Atenti BUDGET series is divided into indoor application rental products. Its reliable quality, design, OEM model of manufacturing in this series helps the clients to customize product based on budget constraints. All our Budget application cabinet models are also designed for easy, seamless installation and dismounting. With high grey scale, high contrast ratio, excellent refresh rate our Budget series promises a high image quality and visual effect. We maintain high quality standards/materials in the production process to ensure a low maintenance product and improve the longevity of the product.
Product Description
· High Definition, wonderful visual appearance
· High refresh rate
· Flicker Free
· De-Ghost design for high quality videos, images and text
· High Gray level with 281 trillion colours
· Black SMD lamp for better contrast
· Good heat dissipation
· Light weight cabinet for easy installation
· High quality mask for better viewing angles and no black lines
· Brightness and colour calibrated Screens
· Die casting aluminium material and special internal
· positioning of power supply for good heat dissipation.
· High Ingress protection
Product pictures
|

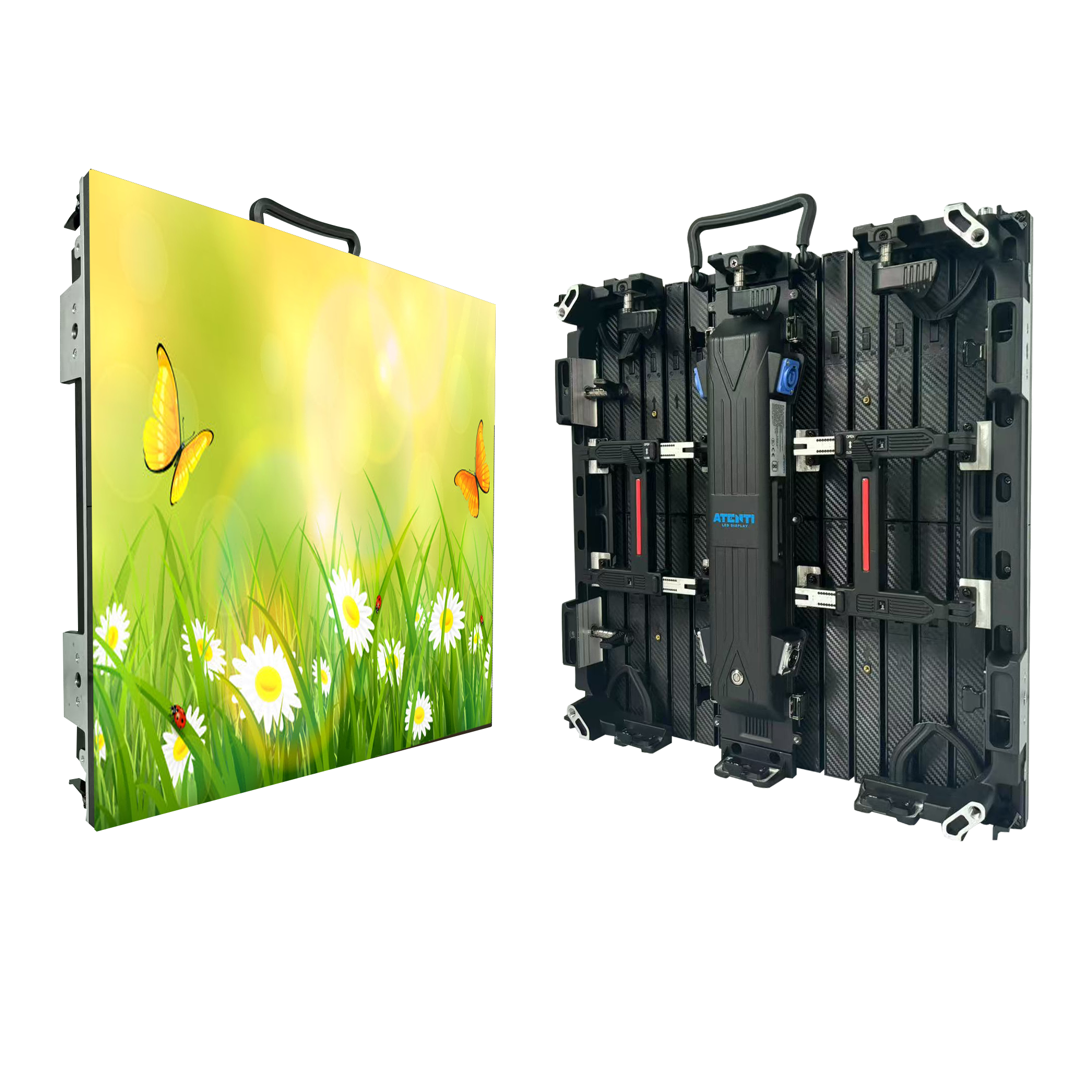

MODEL: |
BI-P2.6 |
|
|
DESCRIPTION: |
PH2.6 indoor full color die cast - -500mmx500mm |
|
|
|
Parameter |
Specification |
|
Lamp |
LED Type |
Black SMD 2121 / Black SMD 2020 |
|
Module |
Pixel Pitch(mm) |
2.6 |
|
Drive Method |
1/32 |
|
|
Driving IC |
ICN2153 |
|
|
Module Size(mm) |
250 x 250 |
|
|
Module Resolution(pixel) |
96 x 96 |
|
|
Cabinet |
Cabinet Size(mm) |
500 x 500 x 90 |
|
Cabinet Display Resolution(pixel) |
192 x 192 |
|
|
Cabinet Type and Material |
Aluminum Die-cast |
|
|
Cabinet Weight（Kg） |
≤8 |
|
|
Display |
Pixel Density |
147,456 pix/㎡ |
|
Viewing Angle |
H 120°，V 120° |
|
|
Brightness |
≥1200cd/㎡ |
|
|
Color Depth |
281 Trillion |
|
|
Refresh Rate(Hz) |
3840 |
|
|
Frame Rate(Hz) |
≥50-60 |
|
|
Voltage(V) |
AC 86~264V |
|
|
Avg. Power Consumption |
280W/㎡ |
|
|
Max. Power Consumption |
800W/㎡ |
|
|
Service Access |
Rear / Front access optional |
|
|
IP Grade F/R |
IP31/43 |
|
|
Operating Temp/Humidity |
-0℃～50℃, 10～90%RH |
|
|
Storage Temp/Humidity |
-0℃～60℃, 10～90%RH |
|
|
Lifetime(Normal Temp) |
≥100000H |
|
|
System Controller |
Linsn,Nova |
|
|
Compliant Standard |
C.E, ETL, BIS |
|
