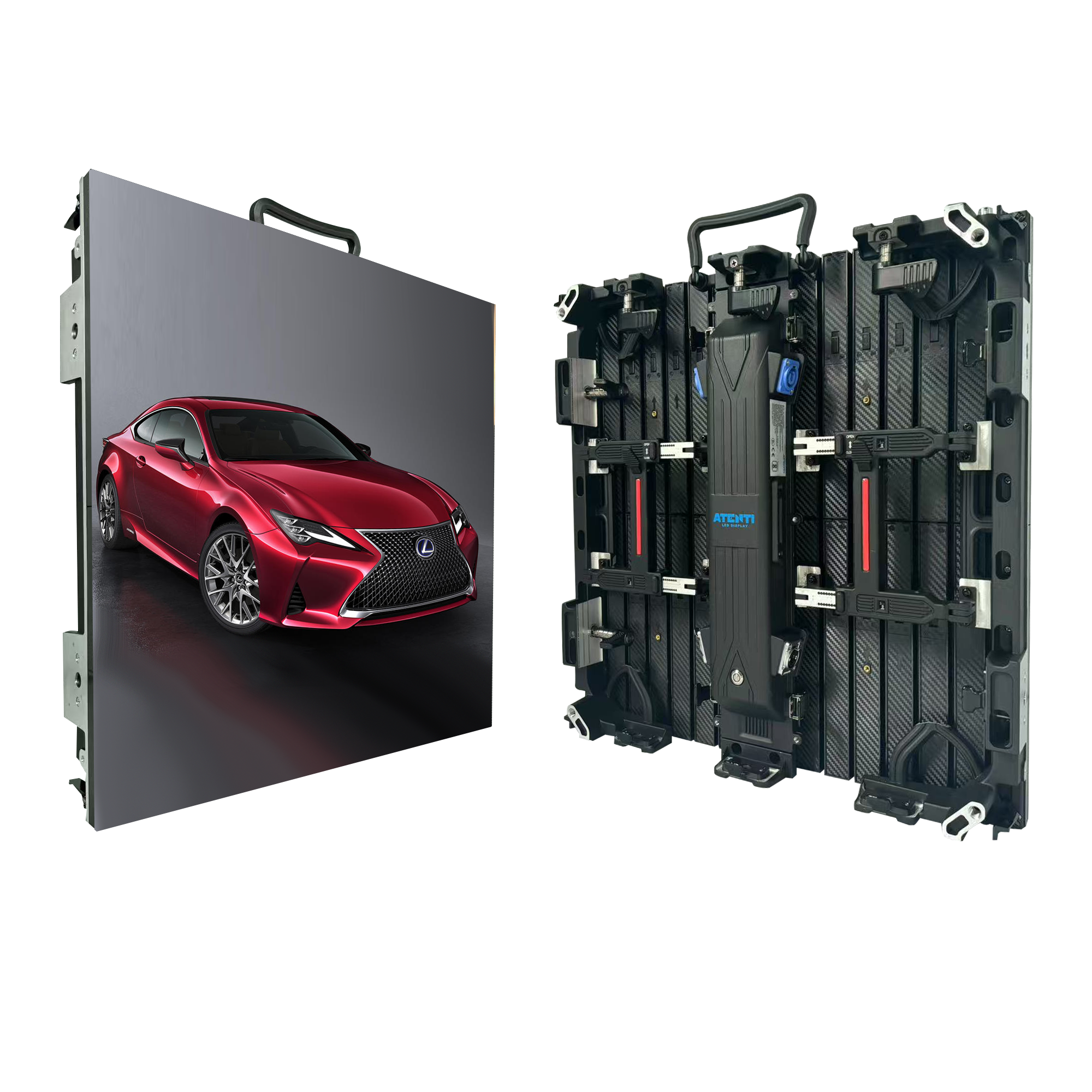

BI-P3.91 (Indoor)

  • BI-P3.91 (Indoor)
  • BI-P3.91 (Indoor)
  • BI-P3.91 (Indoor)
  • BI-P3.91 (Indoor)
  • BI-P3.91 (Indoor)
  • BI-P3.91 (Indoor)



Atenti BUDGET series is divided into indoor application rental products. Its reliable quality, design, OEM model of manufacturing in this series helps the clients to customize product based on budget constraints. All our Budget application cabinet models are also designed for easy, seamless installation and dismounting. With high grey scale, high contrast ratio, excellent refresh rate our Budget series promises a high image quality and visual effect. We maintain high quality standards/materials in the production process to ensure a low maintenance product and improve the longevity of the product.


Product Description

·        High Definition, wonderful visual appearance

·        High refresh rate

·        Flicker Free

·        De-Ghost design for high quality videos, images and text

·        High Gray level with 281 trillion colours

·        Black SMD lamp for better contrast

·        Good heat dissipation

·        Light weight cabinet for easy installation

·        High quality mask for better viewing angles and no black lines

·        Brightness and colour calibrated Screens

·        Die casting aluminium material and special internal

·    positioning of power supply for good heat dissipation.

·        High Ingress protection




Product pictures



MODEL:

BI-P3.91



DESCRIPTION:

PH3.91 indoor full color   die cast - -500mmx500mm



Parameter

Specification

Lamp

LED Type

Black   SMD 2121 / Black SMD 2020

Module

Pixel Pitch(mm)

3.91mm

Drive Method

1/16

Driving IC

ICN2153  (Optional)

Module Size(mm)

250 x 250

Module Resolution(pixel)

64 x 64

Cabinet

Cabinet Size(mm)

500 x 500 x 90

Cabinet Display Resolution(pixel)

128 x 128

Cabinet Type and Material

Aluminum Die-cast

Cabinet WeightKg

≤8

Display



Pixel Density

65,536 pix/

Viewing Angle

H 120°V 120°

Brightness

≥1200cd/

Color Depth

281   Trillion

Refresh Rate(Hz)

3840

Frame Rate(Hz)

≥50-60

Voltage(V)

AC   86~264V

Avg. Power Consumption

280W/

Max. Power Consumption

800W/

Service Access

Rear /Front access optional

IP Grade F/R

IP31/43

Operating Temp/Humidity

-050, 1090%RH

Storage Temp/Humidity

-060, 1090%RH

Lifetime(Normal Temp)

100000H

System Controller

Linsn,Nova

Compliant Standard

C.E, ETL, BIS
