Atenti RETAIL series are specific applications catering to the indoor /outdoor environment for retail store design and advertising. Our exclusive range of Retail signage and store design products not only improves the brand image of your products but also creates an innovative and eye catching appearance to the Retail store area, thereby enhancing the sales turnover.
|
MODEL: |

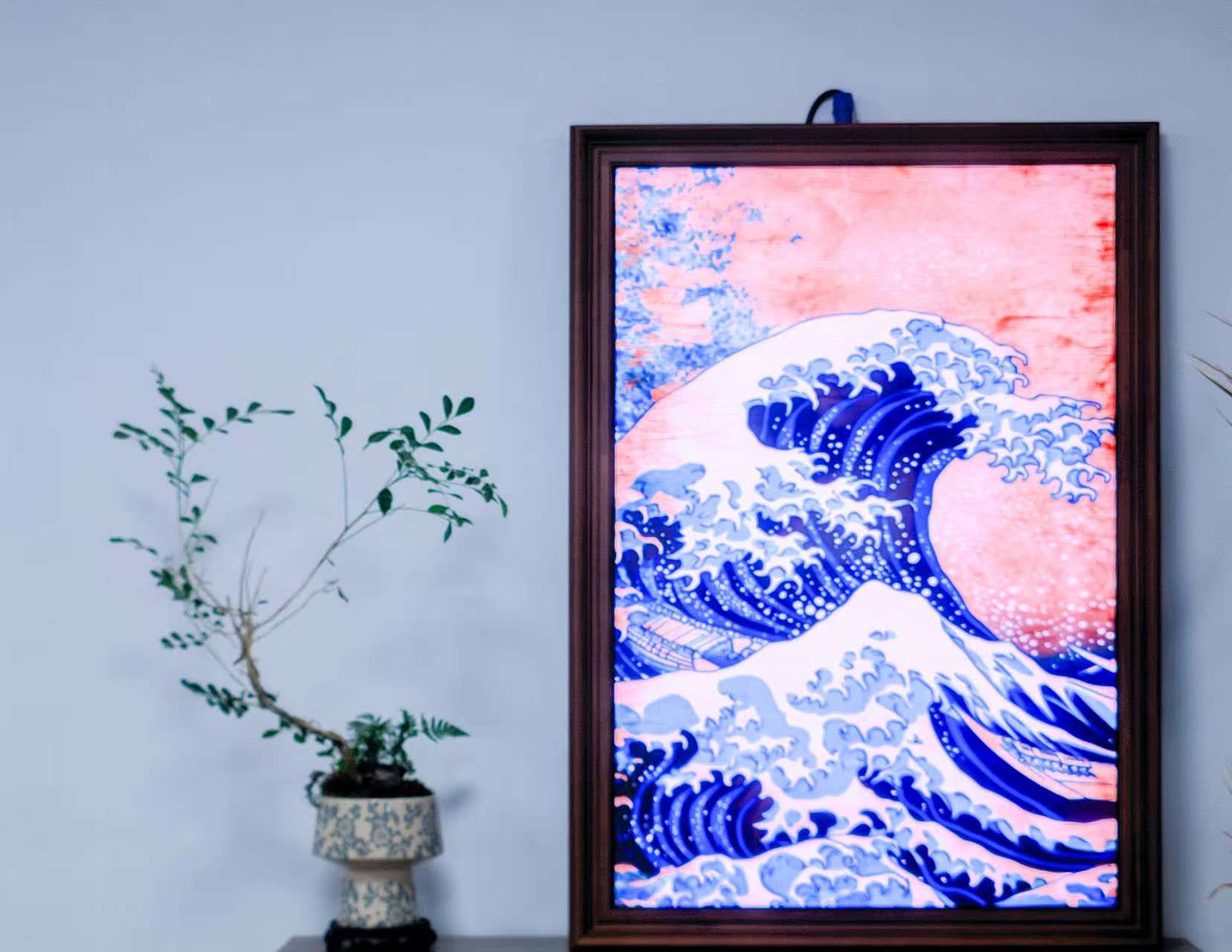

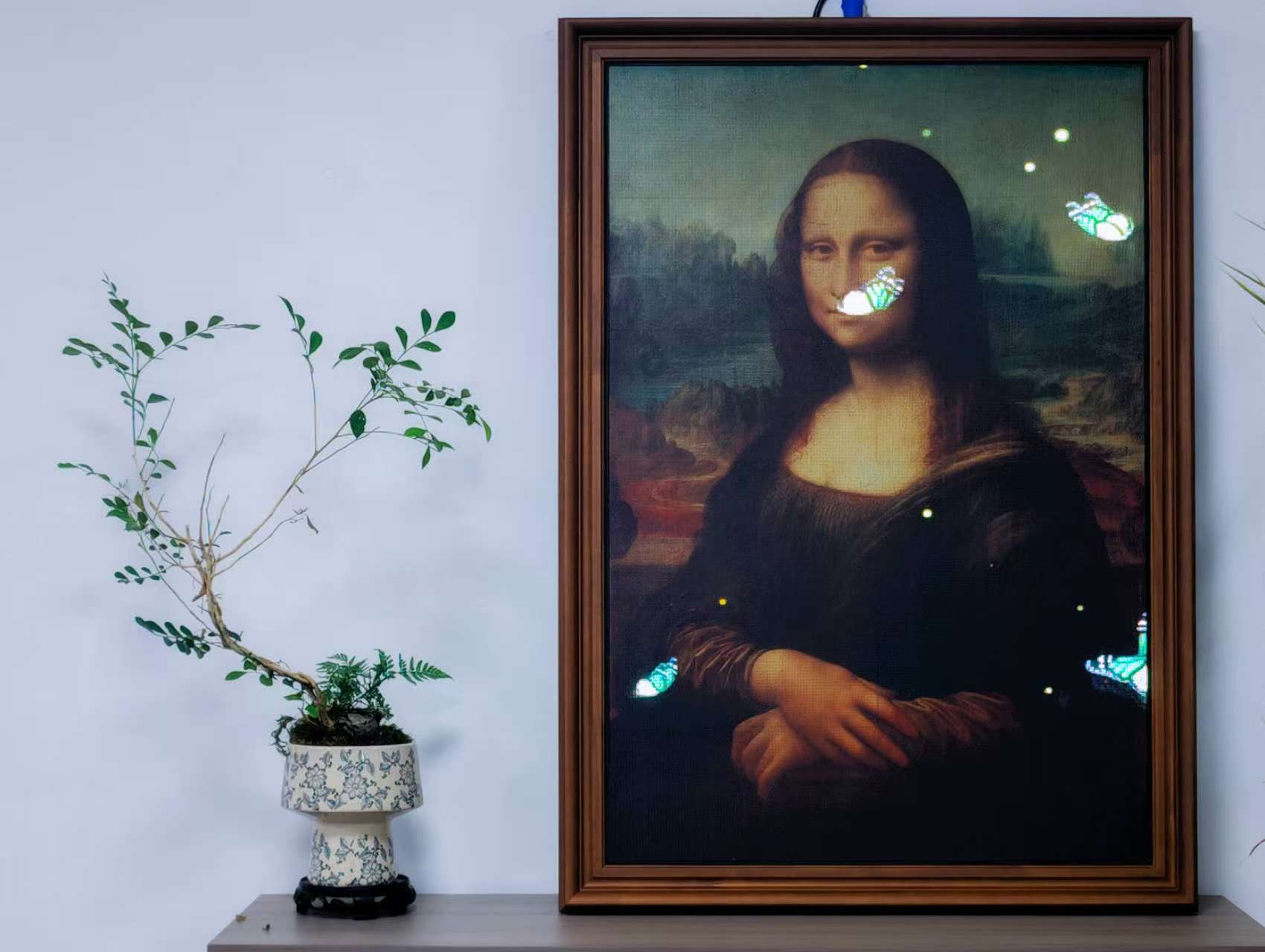

NeoCanvas LED – P1.8 |
|
|
DESCRIPTION: |
P1.8mm Indoor – NeoCanvas Led Display |
|
|
|
Parameter |
Specification |
|
Lamp |
LED Type |
SMD1010 |
|
Module/Cabinet |
Pixel Pitch(mm) |
1.8mm |
|
Drive Method |
1/43 |
|
|
Driving IC |
Support 3840HZ |
|
|
Module Size(mm) |
320mm x 160mm |
|
|
Module Resolution |
172 x 86dots |
|
|
Viewing Angle |
H 160°，V 160° |
|
|
Cabinet size |
Customized |
|
|
Screen Size |
640 x 960 x 55mm (Can be customized) |
|
|
Cabinet Material |
Aluminum |
|
|
Display |
Pixel Density |
288906pixels/㎡ |
|
Screen resolution |
256dots * 704dots |
|
|
Brightness |
750cd/㎡ |
|
|
Color Depth |
16 bit |
|
|
Refresh Rate(Hz) |
3840 |
|
|
Frame Rate |
> 60 frames/sec |
|
|
Brightness Adjustment |
256/16 |
|
|
Screen Weight (kg) |
22Kgs/m² |
|
|
Power Supply/Voltage(V) |
110V-220V |
|
|
Avg. Power Consumption |
100-300w |
|
|
Max. Power Consumption |
≤800w |
|
|
Service Access |
FRONT |
|
|
IP Grade |
IP31/43 |
|
|
Operating Temp/Humidity |
-0℃～45℃, 10～90%RH |
|
|
Storage Temp/Humidity |
-0℃～65℃, 10～90%RH |
|
|
Lifetime(Normal Temp) |
>100,000 Hours |
|
|
System Controller |
Novastar /Synchronous or Asynchronous |
|
|
Printed Mask |
Customized |
|
