Atenti RETAIL series are specific applications catering to the indoor /outdoor environment for retail store design and advertising. Our exclusive range of Retail signage and store design products not only improves the brand image of your products but also creates an innovative and eye catching appearance to the Retail store area, thereby enhancing the sales turnover.
Features:

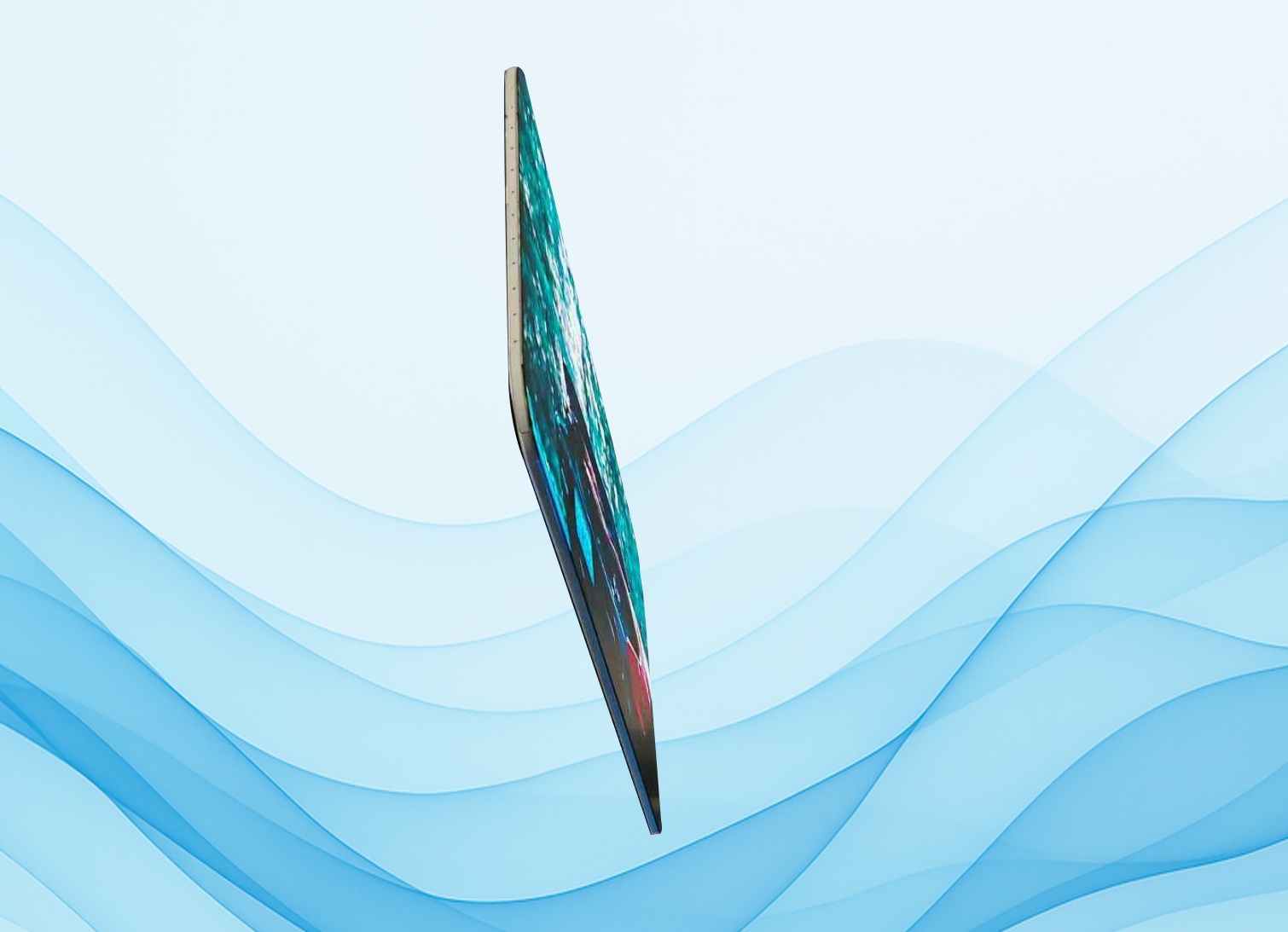

1. Our new and unique slim design of screen is only 31mm and with curved corners.

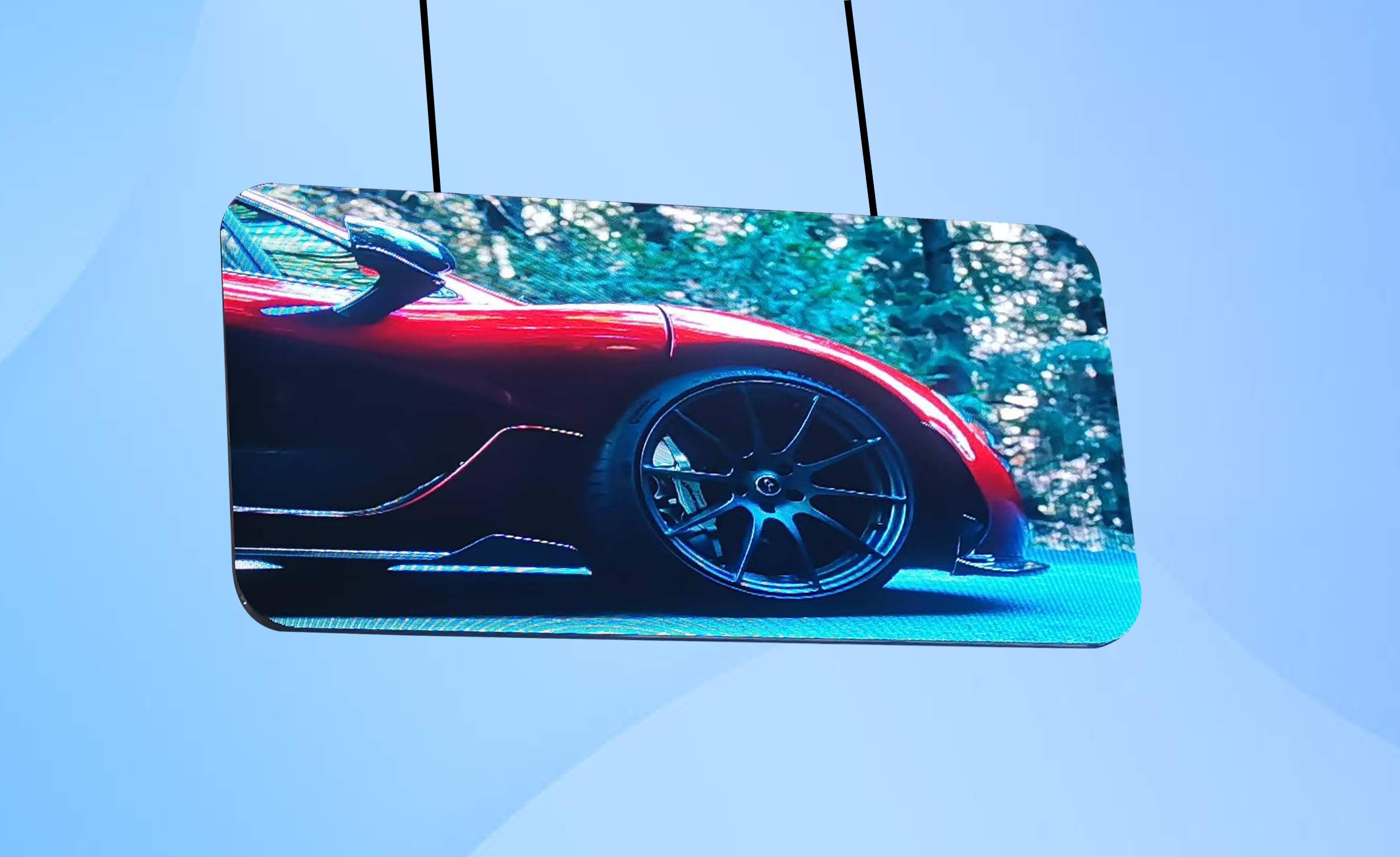

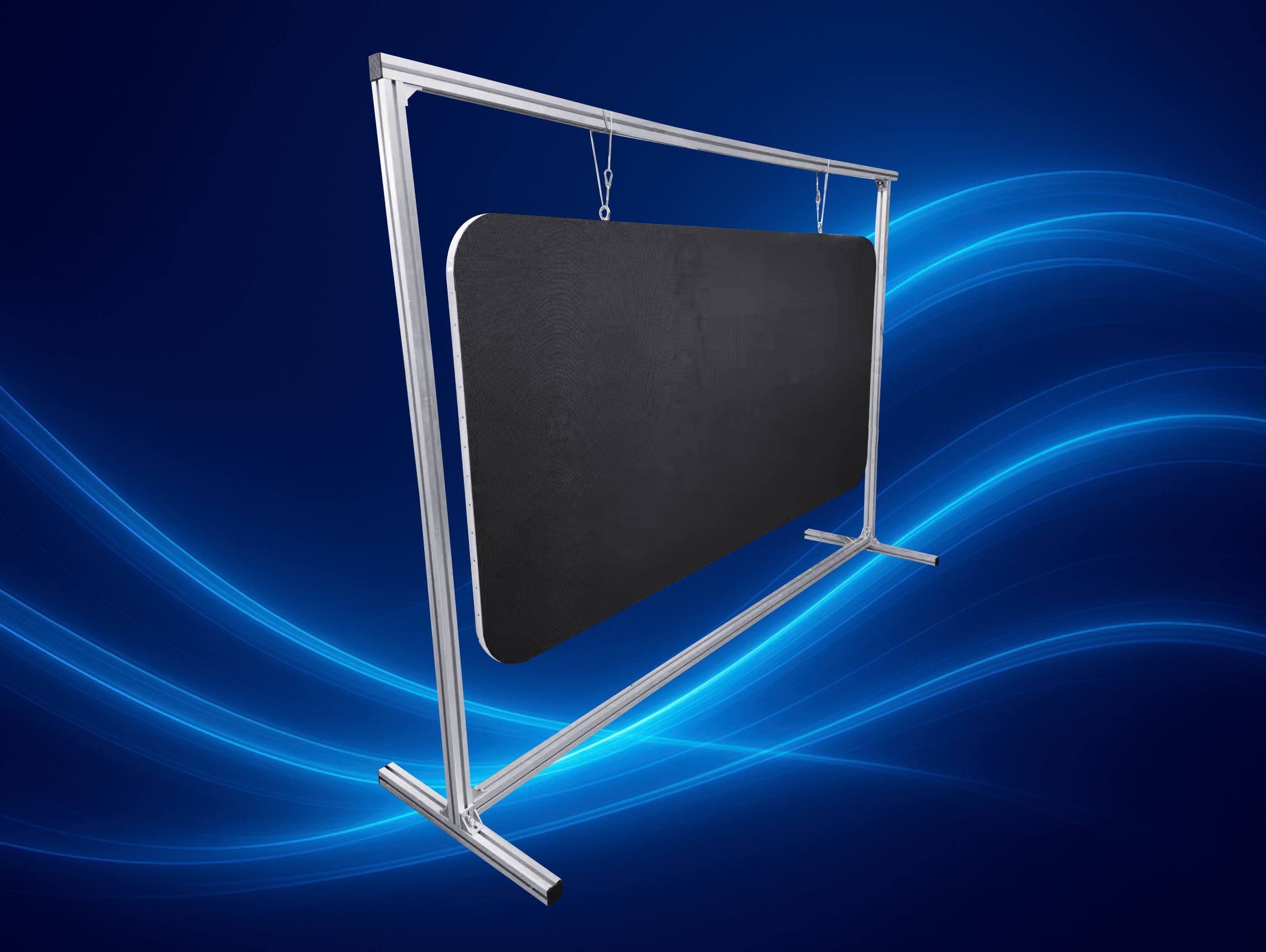

2. Front access and hanging way for installation, easily replace and maintain.
3. Double-sided led displays provide two viewing sides. It can be displayed on one side or both sides
4. The all-aluminum box design makes it have good heat dissipation performance. No need for additional fans for cooling.
|
MODEL: |
Double Sided Capsule LED Display –P2.5 |
|
|
DESCRIPTION: |
P2.5mm Indoor – Double Sided Capsule LED Display (2000x1000mm) |
|
|
|
Parameter |
Specification |
|
Lamp |
LED Type |
SMD2020 |
|
Module/Cabinet |
Pixel Pitch(mm) |
2.5mm |
|
Drive Method |
1/25 |
|
|
Driving IC |
ICN2153 |
|
|
Module Size(mm) |
250mm x 250mm |
|
|
Module Resolution |
100 * 100 dots |
|
|
Viewing Angle |
H 140°，V 140° |
|
|
Cabinet size |
L2000xW1000xH31mm |
|
|
Screen Size |
2000x 1000mm |
|
|
Cabinet Material |
Aluminum Profile |
|
|
Display |
Pixel Density |
160,000 pixels/㎡ |
|
Screen resolution |
800dots * 400 dots |
|
|
Brightness |
1000-1400cd/㎡ |
|
|
Color Depth |
16 bit |
|
|
Refresh Rate(Hz) |
3840 |
|
|
Transparent Rate |
> 60 frames/sec |
|
|
Brightness Adjustment |
256/16 |
|
|
Screen Weight (kg) |
33KGS/pc |
|
|
Power Supply/Voltage(V) |
110V-220V |
|
|
Avg. Power Consumption |
160W |
|
|
Max. Power Consumption |
450W |
|
|
Service Access |
FRONT |
|
|
IP Grade |
IP31 |
|
|
Operating Temp/Humidity |
-0℃～45℃, 10～90%RH |
|
|
Storage Temp/Humidity |
-0℃～65℃, 10～90%RH |
|
|
Lifetime(Normal Temp) |
>100,000 Hours |
|
|
System Controller |
Novastar |
|
